Brass self-cleaning taper-slot Vents. Slots diverge towards underface. Effectively prevents sand clogging. Concave underface provides maximum support to vent face. Recommended for CO2 process core venting.

Metric size: from Dia. 3mm to Dia. 30mm

Inch size: from Dia. 1/8" to Dia.1"

Slot type:
0.30mm taper slot
0.50mm taper slot
0.20mm & 0.30mm parallel slot

Height: 7mm - 8mm - 10mm

Metric size: from Dia. 3mm to Dia. 30mm

Inch size: from Dia. 1/8" to Dia.1"

Slot type:
0.30mm taper slot
0.20mm & 0.30mm parallel slot

Height: 7mm - 8mm - 10mm

Screen type Vent; high venting area. Brass body with monel screen. Sizes Dia.1/2" and Dia.12mm over have supporting braces.

Metric size: from Dia. 4mm to Dia. 25mm

Inch size: from Dia. 1/4" to Dia.1"

Height: 8mm

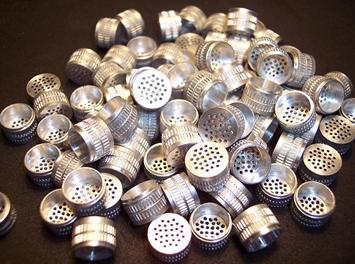

Dia. 3mm to 15mm
Height: 5.5mm 7mm
Hole diameter:0.80mm
Thickness of head plate: 1.1mm
Hole quantity: as per requirement

Super vents are self-cleaning and feature an opening rate of more then 43%. Using these vents will solve the problem of clogging which can affect the continuous operation of a core molding machine during no-bake molding. The 43% opening rate (compared to an average of 13% for slotted vents and 30% for screen vents) results in more effective an efficient venting. These vents offer a slot width of 0.25mm.

Metric size: from Dia. 3mm to Dia. 20mm

Height: 7mm - 8mm - 10mm

stainless sintered vent


Plastic Vent

Diameter: 8mm,10mm,12mm,14mm,16mm,20mm

Height:7mm
